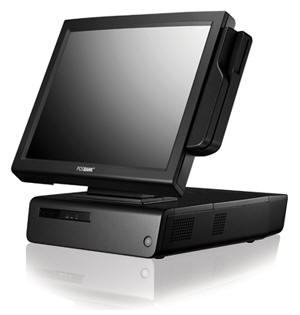

V-Slim

The Moderately Priced High Performance POS system with a Slim and Compact Design

15” touch screen POS system equipped with Intel Celeron M 1.5GHz processor. It supports diversified applications with the choice of MSR, 12” 2nd display or VFD customer display. Also, its various ports, including two front USB ports, make the model compatible with numerous devices. Its stylish and slim design fits very well into any limited counter space in the retail, restaurant or hospitality sector. The robust structure with aluminum die cast base features means that it is capable of withstanding daily usage under harsh operating environments.

All in one POS

V-Tech Products

V-Tech

What's Special

	High Serviceability Considerate mechanical design for easy HDD maintenance. You need to release only one screw to reach HDD. Innovative Fee-Noise Cooling Design s

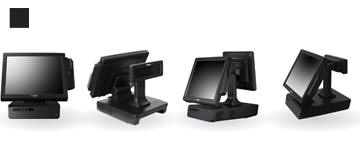

	Touch Screen with Flexible To Adjusting Angle (4 Sides - Up & Down, Left & Right)
	Easy Maintenance High serviceability mechanical design for easy HDD maintenance. You need to release only one screw to reach HDD.
	Space Saving footprint

Specifications

		SlimPOS_M	SlimPOS_D5
CPU(Support)		Intel Celeron Mobile 1.5GHz	Intel Pineview-D D510
Chipset		Intel 91xGME	ICH8M
HDD		SATA 2.5inch(Default 160GB)
Memory		DDR2 SODIMM x 1slot (Default 1GB up to 1GB)	DDR2 SODIMM x 1 slot (Default 1GB up to 2GB)
VGA		Intel 82915GM GMCH (Independent dual display)	Intel Gen3.5+GFX Render Core
Display		15" TFT LCD with 5-wired resistive Touch Screen 1024 x 768 resolution
Internal I/O	USB	2 Ports (reserved for Touch controller and SCR EMV card)
	P/S2	1 Keyboard reserved for MSR controller
	RS-232	COM 4 reserved for VFD or 2nd display COM 5 , 6 with 9 pin header	COM 4 reserved for VFD COM 5 , 6 with 9pin header
	D-SUB	Reserved for 2nd display
	Extension	MINI PCI	Mini PCIe
	LVDS	Main display use
External I/O	Parallel	1 Port
	USB	Front 2, Rear 3
	P/S2	Mouse 1 / Keyboard 1
	RS-232	COM 1 ~ 3 with +5/12V power output on 9pin	COM 1 ~ 3 with +5/12V power output on 9pin
	LAN	GbE LAN
	Audio	Each 1 Line-out/ Line-in/ Mic
Options	MSR	Comply with ISO 7811, Support 1, 2 , 3 track
	SCR	EMV level
	Dallas	Dallas I-button reader
	VFD	VFD type customer display (20 x 2)
	2nd LCD	12.1" LCD : 1024 x 768 resolution
	DVR	DVR Card : 4 channels support
	Wi-Fi	Mini PCI for wireless LAN.
	VGA	Mini PCI for VGA card
Safety , EMI		CE, FCC, KCC
Power Supply		AC 110 or 220V (Max. 240 watt)	INPUT: 100-240V~,50/60Hz 1.5A ,OUTPUT: DC 12V 5A
OS Support		Linux, Windows 2000/XP/XPE, WEPOS, POS Ready, Windows 7

* Specifications are subject to change without prior notice
