Citizen CL-S700 Label Printer

The CL-S700 series is built with durability and ease of access in mind.

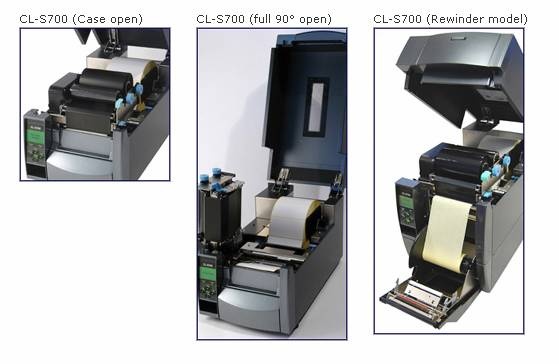

The CL-S700 series is built with durability and ease of access in mind. Featuring a large, programmable front LCD control panel and a revolutionary Cross-Emulation™ control board that allows the printer to switch from Datamax® to Zebra® emulations at the touch of a button, the CL-S700 is designed for years of service. The CL-S700’s front-loading rewinder option is unique in the industry. All rewinder loading and unloading is accomplished from the front of the unit. Ribbon and media loading is equally quick and easy with a Hi-Lift™ metal mechanism that opens to a full 90° allowing for easy access to theribbon and media path. 300 dpi version now available.

Label Printers

V-Tech Products

V-Tech

Features

■Programmable front LCD panel.
■Cross-Emulation™ control board
■Direct thermal, only or direct thermal and thermal transfer printing models available
■Fast 10 ips print speed
■For Thermal Transfer models: 450m ribbon – inside or outside wound
■Metal Hi-Lift™ print mechanism
■Heavy-duty steel cabinet
■Ships with Windows™ 2000, XP, and Vista drivers
■For Thermal Transfer models: Active Ribbon Control and Positioning system (ARCP)
■Internal 8-inch (200mm) media capacity
■300 dpi version available (CL-S703)
■Optional internal Ethernet card
■Optional peeler and cutter available

Specifications

Printing technology	Thermal transfer & Direct thermal
Resolution (approx)	203 dpi
Maximum print speed	254 mm (10 inches) per second
Maximum print width	104 mm (4.1 inches)
Minimum print length	812.8 mm (32 inches)
Media width	25.4 - 118 mm (1 - 4.65 inches)
Paper thickness	0.0635 - 0.254 mm (0.0025 - 0.01 inches)
Paper length	6.35 - 812.8 mm (0.25 - 32 inches)
Media roll size	Outer diameter: Max.ø 203 mm (8 inches) Paper core diameter: 38 - 76 mm (1.5 - 3 inches)
Ribbon	Length: 450 m (1.476 feet) Width: 25.4 mm (1 inch) Outer diameter: 86.5 mm (3.4 inches) Core diameter: 25.4 mm (1 inch)
Adjustable sensor	standard
Barcodes	Code3of9, UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, Code128, HIBC (Modulus 43-used code 3 of 9), Codebar (NW-7), Int2 of 5 (Modulus 10-used interleaved 2 of 5), Plessey, Case Code, UPC 2 DIG ADD, UPC 5DIG ADD, Code93, ZIP, UCC/EAN128 (for K-MART), UCC/EAN128 RandomWeight, FIM, UPS Maxi Code, PDF417, Data Matrix, QR Code, Aztec, RSS
Fonts	1. 7 kinds of fixed pitch font (Overseas, English fonts and European fonts) 2. OCR fonts OCR-A, OCR-B 3. Proportional fonts 4. True type rasterizer
User memory	RAM memory: 16 Mb (User area: 1Mb) Flash (NV) memory: 4 Mb (User area: 1.0 Mb)
Interface	Parallel (IEEE1284 / compatible, Nibble, ECP mode) Serial (2400 4800 9600 19200 38400 57600 115200 bps) USB (FULL speed USB 1.1) Wired Ethernet (10-BASE-T / 100-BAWS TX) or Wireless LAN (Option)
Indications and switches	LCD: 4-line back-light graphic type LED: Power , Error Buzzer: Alarms, errors, etc Operating panel keys: Pause, Feed, Stop, Menu Head-up detection sensor: Detects head open Power switch: Turns power ON and OFF
Options	Auto-cutter, peeler, Ethernet or LAN interface board
Power supply	AC100 - 240V (-10% + 65), 3.0 - 1.5 V, 50 / 60Hz
Dimension(WxDxH) & Weight	255 x 490 x 265 mm (10 x 19.3 x 10.4 inches) / 13.3 kg (29.3 lb)
Reliability	Printhead 50 km
Safety complicance	UL, C-UL, FCC : class A, CE Marking

Specifications are subject to change without prior notice
