V-K795

The Economic, Reliable and Stylishly Designed

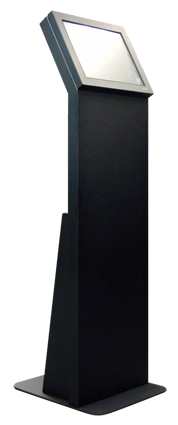

K795T is a revolutionary information kiosk. Its modularized kiosk design allows one to swap out a defective all-in-one panel PC in a matter of seconds. Its stylish, slim and small footprint design, industrial powder coating chassis is ideal for applications where space is at a premium.

With a fanless design, it is perfect for noise free environments. K795T is a powerful Kiosk for information, way-finding, museum, personnel directory, and unattended counter applications.

All in one POS

V-Tech Products

V-Tech

Special

Easy Rear Service

Slim Design

All in one

Metal Black or Stainless

Model Name	K795T
Mainboard	B68
Processor	Intel® Atom™ N270 Processor 1.6GHz L2 512K FSB 533MHz
Core Logic	Intel® 945GSE Express + ICH 7M
System Memory	2 x DDR2 DIMM up to 2GB FSB 533MHz
Graphic Memory	Intel® GMA 950 share system memory up to 224MB
LCD Touch Panel
LCD Size	15" TFT LCD
Brightness	250 cd/m² (350 cd/m² optional)
Resolution	1024x768
Touch Screen	Resistive / SAW / IR / Temper glass
Storage Devices
Hard Drive	1 x 2.5" slim HDD bay
Flash Memory	Option Compact Flash Memory (without HDD)
Expansion
Mini-PCI	1
External I/O Ports
USB Port	4 x USB 2.0
Serial Port	4 x RJ-45 (COM3 & COM4 pin 1/9 with 5V or 12V powered by Jumper)
Parallel Port	1
LAN Port	1 x RJ45 10/100Mbps Giga LAN
Cash Drawer	1 (12V or 24 V)
DC Jack	1
Audio Jack	1 x Line-out, 1 x MIC-in
PS/2	1
Internal Interface
USB Port	2 x USB 2.0
Power	Adapter (DC 90W, 19V, 4.7A)
Certificate
EMC & Safety	FCC Class A, CE, LVD
Environment
Operating Temperature	O°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity	5% ~ 95% RH non-condensing
Storage Humidity	5% ~ 95% RH non-condensing
Dust & Water Proof	NEMA 4 / IP65 in front bezel
Dimension (W x D x H)	400 x 460 x 1353 mm / 15.7" x 18.1" x 53.3"
Weight	38kg (83.8lbs)
Mounting	100mm x100mm Standard VESA mounting holes
OS Supported	Windows® XP, WEPOS, XP Embedded, XP Professional for Embedded, WIN 2000 Professional Embedded, Embedded Linux

* Specifications are subject to change without prior notice
