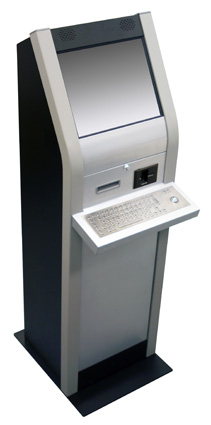

V-K897

The Economic, Reliable and Stylishly Designed

Under an undoubted elegant and stylish appearance, K897 is much more than just skin deep. A user friendly ADA compliant kiosk equipped with 17-inch hi-brightness LCD monitor, vandal-proof touchscreen, 2mm thick metal enclosure with industrial powder coat finish plus a pair of constructive aluminum side rods, K897 is announcing its robustness, durability and perfect fit for most unattended indoor public access areas.

Adopting Intel® 945GC chipset, Core 2 Duo CPU and up to 2GB DDRII memory, K897 high performance PC engine could fulfill all kinds of kiosk application / software requirements.

A full range of peripheral options are all modular integrated into K897 for quick and easy maintenance. K897 is the ultimate of versatility, functionality and serviceability.

All in one POS

V-Tech Products

V-Tech

Special

Loyalty program payment

Cash Payment

Electronic Payment

Model Name	K897
Mainboard	B91
CPU	LGA775 CPU FSB533 / 800 / 1066MHz
CPU	Core™ 2 Duo 2.13G (E6400) Pentium 4 3.4G (651) Celeron® D 3.2G (352)
Chipset	Intel® 945G + ICH7R
System Memory	2 x 240-pin DIMM socket up to 4GB DDR2 667Mhz
Graphic Memory	Share System Memory up to 232MB
LCD Panel
LCD Size	17" TFT LCD
Brightness	up to 420 cd/m²
Resolution	1280x1024
Touch Screen	6 mm thick vandal-proof ELO SAW touchscreen
Tilt Adjustment	30°
Speaker	2 x 3W speakers
Storage Device
Hard Drive	1 x 3.5" SATA HDD
Expansion
Mini-PCI Socket	1
I/O Port
PS/2	1
USB Port	4 x USB 2.0
Serial Port	4 x Powered COM (pin1 / pin9 with 5V / 12V power)
Parallel	1
LAN Port	1 x RJ-45 (10/100Mbps Giga LAN)
Second Display	1
Line-out	1
DC24V output	1
Internal Interface
USB	USB 7,8 header
COM	5, 6 (COM 5 for touch, COM 6 for MSR)
Power	250W ATX
Environment
EMC & Safety	FCC / CE Class A, LVD
Operating Temperature	5°C ~ +35°C (41°F ~ +95°F)
Storage Temperature	-20°C ~ 55°C (-4°F ~ 140°F)
Operating Humidity	20% ~ 80% RH non-condensing
Storage Humidity	20% ~ 85% RH non-condensing
Dimension (W x D x H)	455 x 380 x 1425 mm / 17.9'' x 15'' x 56.1"
Weight	80kg (176.3lbs)
OS Supported	Windows® XP, WEPOS, XP Embedded, XP professional for Embedded, WIN 2000 professional Embedded, Linux

* Specifications are subject to change without prior notice
